EJECTOR GUIDE PIN BUSH

Ejector Guide Pin Bush - We are manufacturer and exporters of Ejector Guide Pin Bush which is also called a push plate guide pin and functions as a guide for sliding of an ejector plate. Because an ejector guide pin bush slides, a hard material is used. An ejector guide bush is also called a push plate guide bush. It is a cylindrical part used to determine the position by matching the ejector guide pin.
The purpose of Ejector Guide System (Pin & Bush) is to align & take the pressure of Return Pin, Ejector Pin & Sprue Puller Pin.The Guide Bush is located between Ejector & Ejector Retainer Plate and the Guide Pin is either guided or bolted in Bottom Plate or in Support Plate.

Advantage :

Ejector Guide System assembly installed hold the Ejector assembly in alignment & reduces wear & tear on Ejection Components.

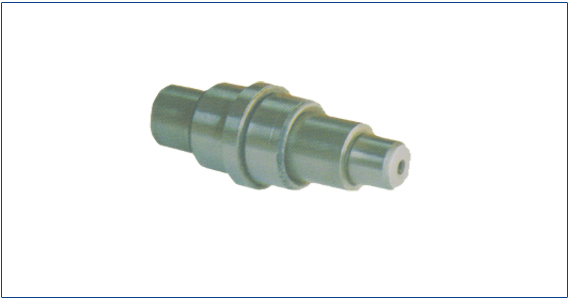

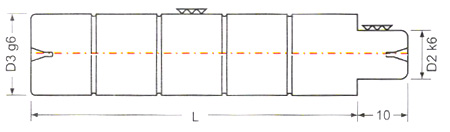

Ejector Guide Pin EP

D3	D2	L
16	12	66 76 86 96 106 116 In Multiple of 10 mm
20	14
24	16
32	22

For Ordering Pin	EP-D3	L	Qty.
e. g.	EP-16	86	4 Nos

Material : OHNS / EN - 31 HRC - 48 - 52

Note : Also available in case harden or other material. Manufactured as per customer requirement.

Ejector Guide Bush EB

D1	D2	D3	L1	L2
25	22	16	10 15 17	15 17 21
32	28	20	15 17	17 21
36	32	24	15 17 21	17 21 27
44	40	32	15 17 21	17 21 27

For Ordering Bush	EB-D2	L1	L2	Qty.
e. g.	EB-22	15	17	4 Nos.
